CH8: SQLite Database Forensics

Chapter Overview

In our previous chapters, we explored how to acquire data from mobile devices and the critical importance of understanding file systems and timestamps. However, acquiring the data is only the first step. Once you have a logical or physical extraction of a modern smartphone, you will quickly realize that the vast majority of the evidentiary value—the text messages, the web history, the application usage, and the location data—is not stored as individual text documents or standalone files. Instead, it is housed within thousands of specialized files known as SQLite databases.

Learning Objectives

By the end of this chapter, you will be able to:

  • Understand the critical role SQLite databases play in modern mobile operating systems (iOS and Android) and application architecture.
  • Identify the core files associated with SQLite databases, including temporary files, and explain their forensic significance.
  • Write fundamental SQL queries (SELECT, FROM, WHERE, ORDER BY, JOIN) to extract, filter, and correlate targeted evidentiary data.
  • Utilize DB Browser for SQLite and other industry-standard tools to manually examine and validate database artifacts.
  • Explain the process of recovering deleted data from SQLite databases using Rollback Journals and Write-Ahead Logs (WAL).

8.1 Introduction: The Goldmine of Mobile Forensics

When investigating a digital crime scene involving a mobile device, investigators must adapt to how modern mobile operating systems handle information. Unlike traditional computer forensics, where a suspect might save an Excel spreadsheet or a Word document to a desktop folder, mobile users interact almost exclusively through discrete applications.

The Shift to App-Based Evidence

Consider a routine cyberstalking or harassment investigation. Ten or fifteen years ago, an investigator's primary focus would be parsing standard SMS text messages and pulling carrier Call Detail Records (CDRs). Today, that same suspect is much more likely to communicate using third-party applications like WhatsApp, Signal, Telegram, or even the direct messaging features within Instagram and TikTok.

Every single one of these applications needs a fast, reliable way to store your data directly on the phone. They need to remember your username, cache your profile pictures, log your incoming calls, and store your chat threads. To accomplish this, app developers overwhelmingly turn to one specific technology: the SQLite database. If a modern smartphone is a digital crime scene, the SQLite databases are the filing cabinets containing the most crucial evidence.

What is SQLite?

To understand SQLite, it helps to first understand what it is not.

Traditional relational database management systems (RDBMS) like MySQL, Microsoft SQL Server, or PostgreSQL are "client-server" based. This means there is a large, dedicated software process (the server) running in the background, carefully managing the data. When an application (the client) wants information, it sends a request over a network connection to the server, which does the heavy lifting and sends the data back.

SQLite, on the other hand, is entirely serverless and self-contained.

There is no separate background process running. SQLite is simply a small, lightweight C-language library that developers bundle directly into their applications. The "database" itself is just an ordinary file resting on the mobile device's flash storage (typically ending in .db or .sqlite). When the app needs to read or write a text message, it interacts directly with that file.

Why Mobile OS Builders Love It

Both Apple (iOS) and Google (Android) have integrated SQLite deeply into their operating systems. It is not just third-party apps that use it; the core functions of the phone rely on it. Your native contacts list, your calendar appointments, your Safari or Chrome web history, and your Wi-Fi connection logs are all stored in native SQLite databases.

Mobile operating system builders and app developers love SQLite for several reasons:

  • Small Footprint: It takes up very little storage space and requires minimal memory (RAM) to operate, which is vital for mobile devices with finite resources.
  • Zero Configuration: Because there is no server process to set up or manage, it simply works right out of the box.
  • Cross-Platform Compatibility: An SQLite database file is structured exactly the same way whether it is sitting on an iPhone, an Android, a Windows PC, or a Mac. This is a massive advantage for forensic investigators, as we can extract an SQLite database from an iOS device and natively open and read it on our Windows-based forensic workstations without any complex conversions.
  • Reliability (ACID Compliant): SQLite guarantees that database transactions are processed reliably. Even if the app crashes or the phone's battery dies right in the middle of sending a message, the database will not become corrupted. (As we will see in the next section, the way SQLite achieves this reliability creates incredible opportunities for forensic data recovery).

By understanding that nearly all user activity on a mobile device is being quietly logged into these localized database files, you can begin to see why mastering SQLite is arguably the most important technical skill a modern mobile forensic investigator can develop.

8.2 The Anatomy of an SQLite Database

To effectively extract evidence from an SQLite database, an investigator must first understand its physical structure and how it manages data on the storage medium. Unlike complex server-based databases that spread data across numerous directories, an SQLite database encapsulates its core structure within a single file, though it relies heavily on important temporary files to ensure data integrity.

The Primary Database File

The core of an SQLite database is a single file, often identified by extensions such as .db, .sqlite, or .sqlite3. Inside this file, data is organized using a relational model. Think of this structure like a highly organized digital spreadsheet.

  • Tables: The primary organizational unit. A single database file will contain multiple tables. For example, a messaging app's database might have one table for Contacts, another for Messages, and another for Call_Logs.
  • Columns (Fields): These define the type of data being stored. In a Messages table, you might have columns for Message_ID, Sender_Number, Message_Body, and Timestamp.
  • Rows (Records): These are the actual individual entries. Every single text message sent or received constitutes a new row within the Messages table.

Forensic Gold: Temporary Files

While the primary database file holds the committed, long-term data, the true "goldmine" for digital media forensics lies in how SQLite handles active transactions.

If a user receives a text message right as their phone battery dies, the database could become corrupted if the write process is interrupted. To prevent this, SQLite uses logging mechanisms to ensure data integrity. For forensic investigators, these logs are incredible sources of evidence because they often contain recently deleted data or historical remnants of altered records.

Rollback Journals (.journal)

In older versions of SQLite (and still used in some specific applications today), the system utilized a "Rollback Journal."

  • How it works: Before an app makes a change to the main database (like deleting a text message), SQLite copies the original, unaltered page of data into a temporary file ending in .journal. Then, it modifies the main database. If the transaction is successful, the .journal file is deleted. If the app crashes, SQLite uses the .journal file to "roll back" the database to its original state.
  • Forensic Significance: If you find a .journal file during your extraction, it means a transaction was interrupted. Even if the file was successfully deleted by the system, the data it contained still exists in unallocated space until overwritten, making it a prime target for file carving.

Write-Ahead Logs (.wal) and Shared Memory (.shm)

Introduced in SQLite version 3.7.0, Write-Ahead Logging (WAL) is the modern standard and is heavily used in both iOS and Android environments.

  • How it works: Instead of modifying the main database directly, all new changes (new messages, deleted messages, updated contacts) are written first to a temporary file ending in .wal. Periodically, when the .wal file reaches a certain size (typically 1,000 pages), SQLite performs a "checkpoint," moving all the finalized data from the .wal file into the main .db file. The system also uses a .shm (Shared Memory) file to keep track of the index for the WAL.
  • Forensic Significance: The WAL file is arguably the most critical artifact in modern mobile forensics. When a suspect deletes an incriminating text message, the application doesn't immediately scrub it from the main database. Instead, it writes a "delete" command into the .wal file. Therefore, the deleted message can often still be read in plain text by examining the .wal file before a checkpoint occurs.

Unallocated Space & Free Pages

What happens when data is permanently deleted and checkpointed? In SQLite, deleting a row does not instantly erase the data from the phone's flash memory.

Instead, SQLite marks that specific area of the database file as a "Free Page." It is essentially telling the system, "I no longer need this space; you can overwrite it later if you need room for new data." Until that exact space is overwritten by new app activity, the original deleted data remains completely intact. Mobile forensics investigators can use manual file carving techniques—searching the raw hexadecimal data of the database file—to recover these "freed" records.

8.3 The Language of Databases: SQL Fundamentals

Understanding the anatomy of the database is crucial, but as an investigator, you need a way to interrogate that data. You need to ask the database specific questions, such as: "Show me all messages sent by this specific phone number between January 1st and January 3rd."

To do this, we use SQL (Structured Query Language).

Demystifying SQL

It is a common misconception that you need to be a software developer or a computer programmer to understand SQL. You do not. SQL is a declarative language, meaning it reads very much like plain English. You are simply declaring what data you want to see and where you want to pull it from.

While automated forensic tools (like Cellebrite Physical Analyzer or Magnet AXIOM) will parse databases for you and present them in a clean report, they are not perfect. Applications update their database structures constantly. If a forensic tool hasn't been updated to understand a new app version, it might miss crucial evidence. Therefore, a competent digital forensics examiner must be able to manually validate findings by writing their own SQL queries.

Building Your First Queries

Almost every forensic query you write will be built upon four foundational commands: SELECT, FROM, WHERE, and ORDER BY.

1. SELECT and FROM

These two commands form the bedrock of any query. SELECT tells the database which columns you want to view, and FROM tells it which table holds those columns.

If we have a table named messages, and we want to see the sender's number and the text content, our query would look like this:

SELECT sender_number, message_body
FROM messages;

(Note: If you want to see every single column in the table, you can use the wildcard asterisk * character: SELECT * FROM messages;)

2. WHERE

Extracting every single message from a suspect's phone will overwhelm a jury. The WHERE clause allows investigators to filter the noise and pull only the legally relevant evidence.

If we only want to see messages sent by a known accomplice (e.g., phone number 555-0199), we apply a filter:

SELECT sender_number, message_body
FROM messages
WHERE sender_number = '555-555-0199';

3. ORDER BY

Timelines make or break criminal investigations. As discussed in Chapter 7, organizing evidence chronologically is vital. The ORDER BY clause allows you to sort your results. You can sort in ascending (ASC) or descending (DESC) order.

SELECT sender_number, message_body, timestamp
FROM messages
WHERE sender_number = '555-555-0199'
ORDER BY timestamp DESC;

This query returns only the accomplice's messages, sorted from the newest message to the oldest.

Connecting the Dots with JOIN

In a well-designed relational database, developers try not to duplicate data.

For example, a messaging app will not store your contact's full name, profile picture, and email address next to every single text message they send. That would waste valuable storage space on the phone. Instead, the app uses two separate tables:

  1. A Contacts table (containing Name, Phone Number, and a unique Contact_ID).
  2. A Messages table (containing the Message Body, Timestamp, and the matching Contact_ID).

If you just query the Messages table, you will see a list of texts and a meaningless Contact_ID number. To make this evidence readable for a detective or a jury, we must use the JOIN command to bridge the two tables together based on their shared ID.

SELECT Contacts.Name, Messages.message_body, Messages.timestamp
FROM Messages
JOIN Contacts ON Messages.Contact_ID = Contacts.Contact_ID;

This query elegantly stitches the evidence together, producing a clean, readable report that shows the actual Contact Name next to the corresponding text message. Mastering the JOIN command elevates you from a beginner to a highly capable digital forensics examiner, allowing you to manually piece together complex evidentiary artifacts that automated tools might overlook.

8.4 Key Mobile Device Databases and Artifacts

When you perform a forensic extraction of a mobile device, you are often presented with a massive file system containing hundreds of thousands of files. Knowing where to look and what databases contain the most evidentiary value is what separates a novice from an expert examiner.

While third-party app developers can name their databases anything they want, core system applications on both iOS and Android have well-documented standard databases.

(Note: On iOS, third-party apps are stored in directories with a randomly generated string of characters called a GUID (Globally Unique Identifier). In the paths below, <GUID> represents that randomized folder name, which will be different on every phone.)

Communication Artifacts (Native)

Historically, standard text messaging (SMS) and multimedia messaging (MMS) were the lifeblood of mobile investigations. Even today, they remain incredibly relevant.

  • Apple iOS (sms.db): On an iPhone, all native text messages and iMessages are stored in a database simply named sms.db.
    • Full Path: /private/var/mobile/Library/SMS/sms.db
    • The core tables you will interact with are the message table (containing the actual text content, timestamps, and read receipts) and the handle table (containing the phone numbers or email addresses of the contacts). You must use a JOIN query to connect the message text to the sender's phone number.
  • Android (mmssms.db or bugle_db): Android devices typically store native messaging data in mmssms.db. If the user utilizes Google Messages as their default app, you will often find the data in bugle_db.
    • Full Path (Native): /data/data/com.android.providers.telephony/databases/mmssms.db
    • Full Path (Google Messages): /data/data/com.google.android.apps.messaging/databases/bugle_db
    • Core tables usually include sms (for text messages) and part or pdu (for MMS attachments).

Third-Party Chat Applications

As discussed earlier, suspects increasingly rely on third-party applications. While automated tools try to keep up, app updates can break automated parsing. Knowing the database names and their standard paths helps you locate them manually.

  • WhatsApp: * Android Path: /data/data/com.whatsapp/databases/msgstore.db
    • iOS Path: /private/var/mobile/Containers/Shared/AppGroup/<GUID>/ChatStorage.sqlite
    • These databases house the messages and chat_list tables. Keep in mind that WhatsApp offers end-to-end encryption in transit, but once the data lands "at rest" in this SQLite database on the unlocked device, it is often accessible to the examiner.
  • Signal: Known for its high security, Signal encrypts its SQLite database even at rest on the device. However, if you have a full physical extraction and the decryption keys, specialized forensic tools can decrypt the database.
    • Android Path: /data/data/org.thoughtcrime.securesms/databases/signal.db
    • iOS Path: /private/var/mobile/Containers/Shared/AppGroup/<GUID>/grdb/signal.sqlite

Web Browsing and Search History

Web history provides a window into a suspect's intent and state of mind. Did they search for "how to hide a body" or "one-way tickets to Mexico"?

  • Safari (iOS): Stored in History.db.
    • Full Path: /private/var/mobile/Library/Safari/History.db
    • The primary tables are history_items (the core URLs) and history_visits (the timestamps of when those URLs were visited).
  • Chrome (Android): Stored in a database simply named History (often without a file extension).
    • Full Path: /data/data/com.android.chrome/app_chrome/Default/History
    • It contains a urls table (the web addresses, visit counts, and typed counts) and a visits table (the chronological timeline of access).

Location and System Artifacts

Smartphones are extraordinary tracking devices. They log where a user has been, who they called, and what networks they connected to.

Artifact Type Apple iOS Database & Path Android Database & Path Forensic Value
Call Logs File: CallHistory.storedata
Path: /private/var/mobile/Library/CallHistoryDB/		 File: calllog.db
Path: /data/data/com.android.providers.contacts/databases/		 Timestamps, durations, and directional data (incoming/outgoing/missed) for native cellular calls and some VoIP apps.
Contacts File: AddressBook.sqlitedb
Path: /private/var/mobile/Library/AddressBook/		 File: contacts2.db
Path: /data/data/com.android.providers.contacts/databases/		 User-saved names, linked phone numbers, and email addresses. Vital for correlating raw phone numbers found in sms.db.
Locations File: Cache.sqlite
Path: /private/var/mobile/Library/Caches/com.apple.routined/ (Significant Locations)		 File: gmm_myplaces.db
Path: /data/data/com.google.android.apps.maps/databases/		 Cached GPS coordinates, saved map routes, and user-searched locations.

8.5 Forensic Examination Tools and Methodologies

With an understanding of what SQLite databases are and where they reside, we must now focus on how to securely and accurately examine them. Mobile forensics utilizes a multi-tiered approach to tool selection, ranging from massive automated suites to granular, manual viewers.

Automated Commercial Suites

In a modern digital forensics lab, your first pass at a mobile device extraction will likely be handled by a commercial, automated tool such as Cellebrite Physical Analyzer, Magnet AXIOM, or MSAB XRY.

  • The Advantage: These tools are incredibly powerful. They automatically locate thousands of SQLite databases, parse the data, decode the timestamps (which we covered in Chapter 7), recover deleted records from WAL files, and present everything in a highly readable, timeline-based graphical interface.
  • The Limitation: They act as a "black box." If an app developer updates their database schema overnight by changing a column name from msg_body to text_content, the automated tool will fail to parse that column until the forensic software company releases an update. As an investigator, you cannot simply say, "The tool didn't find any messages, so there are none." You must verify.

DB Browser for SQLite

When the automated tools fail, or when you need to validate a critical piece of evidence before testifying in court, you turn to manual analysis. DB Browser for SQLite is the industry standard for this task.

DB Browser is a free, open-source, and highly respected visual tool used to create, design, and edit database files compatible with SQLite. In forensics, we strictly use it in a read-only capacity to examine exported .db files.

Tip

You can download the free version of DB Browser for SQLite here: https://sqlitebrowser.org/dl/

A Typical Workflow in DB Browser:

  1. Extraction and Hashing: You first locate the target database (e.g., sms.db) within your forensic image. You extract a copy of this file to your forensic workstation and immediately generate a cryptographic hash (MD5 or SHA-256) to maintain the chain of custody.
  2. Opening the Database: You open the copied .db file in DB Browser.
  3. Browse Data (GUI Verification): You navigate to the "Browse Data" tab. This provides a simple spreadsheet-like view of the tables. This is excellent for a quick visual check to see if the table contains the evidence you suspect is there.
  4. Execute SQL (Deep Dive): For complex cases, you navigate to the "Execute SQL" tab. Here, you type the custom SELECT, FROM, WHERE, and JOIN commands we learned in Section 8.3 to filter out the noise and pinpoint the exact artifacts required for your search warrant. You can then export the results of your specific query as a CSV file to be included in your final, court-ready report.

Commercial SQLite-Specific Tools

While DB Browser is excellent for manual queries, other specialized tools bridge the gap between heavy automated suites and raw SQL querying.

Tools like Sanderson SQLite Forensic Toolkit or specialized modules within Belkasoft Evidence Center are designed specifically for the forensic recovery of SQLite data. Their primary advantage lies in Automated Data Recovery. While DB Browser shows you the active database, these specialized tools will automatically parse the .wal files, the .journal files, and carve the unallocated "free pages" to resurrect deleted messages, presenting them clearly to the examiner without requiring advanced manual hex-carving skills.

Validating Findings (A Call Back to Chapter 1)

Recall from Chapter 1 that validation is the cornerstone of digital forensics. Courts require proof that your evidence is reliable.

SQLite forensics is the ultimate validation tool. If Cellebrite outputs a report stating the suspect texted "I did it" at 11:45 PM, a diligent defense attorney might question the software's accuracy. By utilizing DB Browser to manually open the sms.db file, writing a custom SQL query, and taking a screenshot of that exact row of data straight from the source file, you scientifically validate the automated tool's findings. This methodology transforms you from a mere "tool operator" into a true digital media forensics expert.

8.6 Real-World Case Study: "The Digital Alibi"

To truly understand the power of SQLite database forensics, let us apply everything we have learned in this chapter—along with the timestamp analysis from Chapter 7 and the legal processes from Chapter 2—to a realistic, fictional criminal investigation.

The Scenario

At 2:15 AM on a Tuesday, a local electronics store is burglarized. High-end laptops and cameras are stolen. Surveillance footage shows a masked individual loading the stolen goods into a dark sedan, but no license plate is visible.

Through traditional police work, detectives identify a primary suspect. Detectives obtain a search warrant for the suspect’s residence and their mobile device. During the interview, the suspect is confident, claiming a foolproof alibi: "I was home all night. I couldn't sleep, so I was up reading news articles on my phone in bed from 1:00 AM until 4:00 AM."

The Initial Extraction

As the digital media forensics examiner, you receive the suspect’s Android smartphone. Following proper protocol, you isolate the device, verify your search warrant covers all digital data and app containers, and perform a full physical extraction using a commercial automated suite like Cellebrite Physical Analyzer.

You initially check the Chrome browser's History SQLite database. Sure enough, the automated tool parses the visits and urls tables and generates a timeline. The phone was indeed loading various news articles every few minutes between 1:00 AM and 4:00 AM.

On the surface, the digital alibi holds up.

Digging Deeper: The WAL File

However, you are an expert who understands mobile device behavior. You know that a user can set their screen to never sleep and leave a webpage auto-refreshing while they leave the house. You need to look for active human interaction.

You navigate to the native messaging database, mmssms.db. The automated suite shows no text messages sent or received on that Tuesday. The phone appears completely silent.

Knowing that automated tools can sometimes miss uncommitted transactions, you manually locate the database directory within your forensic image. You find three files:

  1. mmssms.db (The main database)
  2. mmssms.db-shm (Shared memory index)
  3. mmssms.db-wal (The Write-Ahead Log)

The presence of a large .wal file indicates there is data that has not yet been checkpointed into the main database.

The Investigator's Scalpel

You export these three files, hash them to maintain your chain of custody, and open them using a specialized SQLite forensic recovery tool capable of reading WAL files (or manually inspect them using hex viewing techniques combined with DB Browser).

Inside the WAL file, you discover several recently deleted rows from the sms table. The suspect thought that by deleting the messages, they were gone forever, but SQLite's logging mechanism preserved them.

You write a custom SQL query to extract these deleted fragments and join them with the contacts list to make the data readable:

SELECT Contacts.Name, sms.address, sms.body, sms.date
FROM sms
JOIN Contacts ON sms.address = Contacts.Phone_Number
WHERE sms.date > '1708930800000';

(Note: We use the WHERE clause to filter for timestamps occurring after 1:00 AM on the night of the burglary).

Breaking the Alibi

Your custom query successfully pulls the deleted rows. You export the results to a CSV file.

The sms.date column displays a 13-digit Unix Epoch timestamp: 1708931700000. Relying on your training from Chapter 7, you decode this timestamp. It translates exactly to 2:15 AM on Tuesday—the exact moment of the burglary.

The sms.body column reveals the text: "Grab the laptops, I have the car running in the alley." The Contacts.Name column, successfully linked via your JOIN command, identifies the recipient as "Driver" (an alias saved in the phone), a known associate with a matching dark sedan.

By understanding the underlying structure of SQLite databases, knowing the forensic value of temporary WAL files, and possessing the ability to manually query and validate the data, you completely dismantled the suspect's digital alibi and provided the critical evidence needed for the investigation.

8.7 Test Your Understanding

Activity

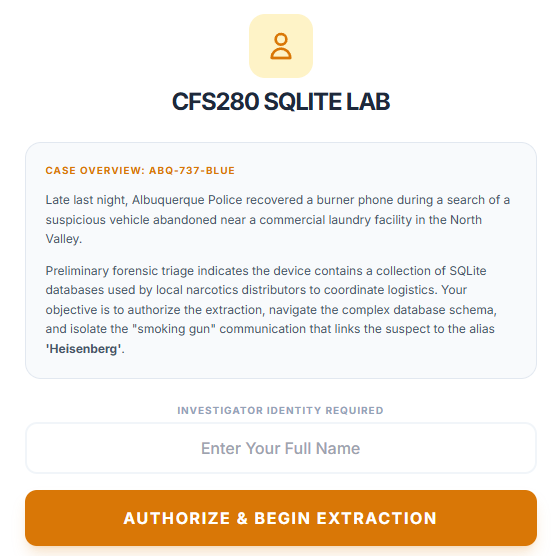

Test your understanding of SQL queries and parse through databases to get to evidence you need! Fans of Breaking Bad should enjoy this one.

Chapter Summary

SQLite databases are the undisputed backbone of mobile device data storage. As we have seen, operating systems like iOS and Android, along with nearly every third-party application, rely heavily on this serverless, lightweight architecture to store highly sensitive user data.

As a digital media forensics investigator, your ability to navigate these databases is paramount. Let's review the core concepts covered in this chapter:

  • The Structure of Evidence: Mobile evidence is rarely stored in standalone files. It is neatly organized into tables, rows, and columns within .db or .sqlite files.
  • The Power of Temporary Files: The most critical evidence is often found not in the main database, but in temporary logging files like Rollback Journals (.journal) and Write-Ahead Logs (.wal). These files temporarily hold transactions and are the primary source for recovering recently deleted messages or tracking application behavior before a checkpoint occurs.
  • SQL is Your Universal Translator: You do not need to rely solely on expensive automated tools. By mastering fundamental SQL commands—SELECT, FROM, WHERE, ORDER BY, and JOIN—you can manually extract, filter, and correlate data from almost any mobile application.
  • Validation is Mandatory: Automated forensic suites are incredibly helpful for triaging massive amounts of data, but they are not infallible. App updates can break automated parsing. Using tools like DB Browser for SQLite allows you to manually view the raw database, execute custom queries, and scientifically validate the findings for legal admissibility.

Having mastered the foundational structures of mobile data storage, timestamps, and database languages, we are now ready to apply these concepts to specific operating systems. In the next chapter, we will dive deep into the open-source architecture of the world's most widely used mobile operating system: Chapter 9: Android Forensics.
