CH3: Disaster Recovery Planning

Introduction: From Business Logic to Technical Reality

In the previous chapter, we focused on the Business Continuity Plan (BCP)—the "Human and Process" side of survival. Now, we shift to the Disaster Recovery (DR) Plan, which answers a different question: if BCP asks "How do we keep operating while systems are down?" then DR asks "How do we get those systems back?" This distinction matters more than ever given today's threat landscape, where ransomware attackers routinely target backup systems to prevent recovery.

In this chapter, we will explore the technical architectures that make recovery possible (from Cold Sites to Infrastructure as Code), walk through the three phases of DR execution using the "Titan Bank" case study, examine critical dependencies that often derail recovery efforts, and learn how to validate your recovery capabilities before you actually need them.

Learning Objectives

By the end of this chapter, students will be able to:

Distinguish between Business Continuity (BC) and Disaster Recovery (DR) roles and responsibilities.
Identify the steps that make up the Disaster Recovery Plan lifecycle.
Identify the three primary phases of a Disaster Recovery Plan (DRP): Activation, Recovery, and Reconstitution.
Compare site redundancy models (Hot, Warm, Cold) and modern cloud-based DR strategies, such as Disaster Recovery as a Service (DRaaS)
Explain the "3-2-1 Rule" for data backups and the importance of immutability.
Describe how Cloud Global Infrastructure and Infrastructure as Code (IaC) facilitate rapid disaster recovery.
Analyze the various methods for testing and validating a DR plan to ensure organizational resilience.

3.1 DR vs. BC: The Critical Distinction

While often used interchangeably in casual conversation, Disaster Recovery and Business Continuity have distinct roles within the Contingency Planning ecosystem.

Business Continuity (BC): Focuses on People and Processes. It answers: How do we keep the department running if the software is gone? This involves manual workarounds, such as using paper forms, or protocols for relocating staff to alternate work locations.
Disaster Recovery (DR): Focuses on Technology and Infrastructure. It answers: How do we get the systems back? This involves technical tasks like restoring from backups, failing over to a secondary data center, or rebuilding a cloud environment from code.

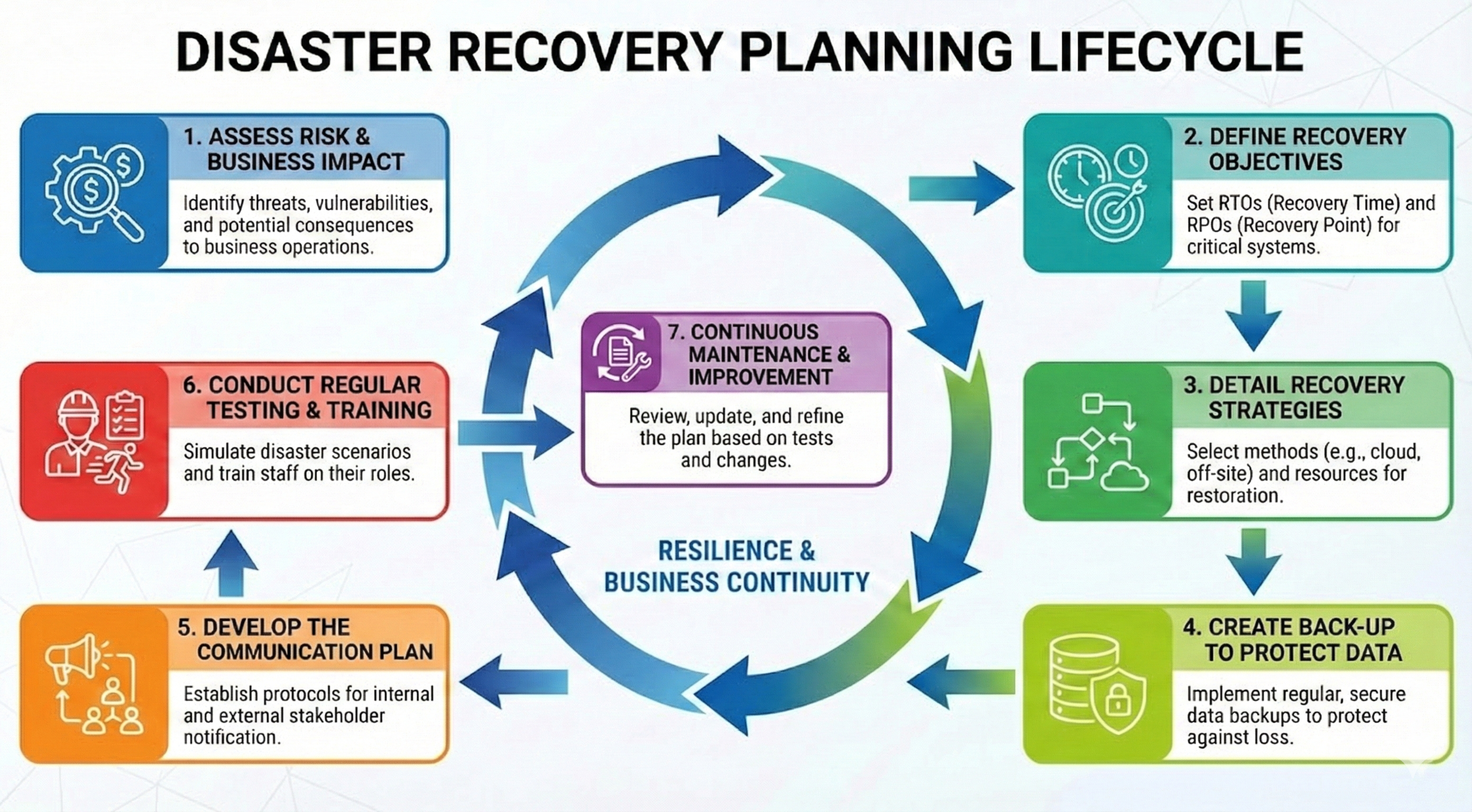

3.2 The Disaster Recovery Planning Lifecycle

Building a robust Disaster Recovery Plan (DRP) is not a one-time event; it is a cyclical process of identification, strategy, implementation, and validation. We divide this process into seven distinct steps to ensure no critical technical dependency is overlooked.

Step 1: Assess Risk and Business Impact

Before a single server can be recovered, the IT team must understand what they are protecting. This step bridges the gap between the Business Impact Analysis (BIA) conducted in Chapter 2 and the technical reality of the data center.

While the BIA identifies which business processes are critical (e.g., "Process ATM Transactions"), the DR Assessment identifies the IT Assets required to support them.

Technical Asset Identification:

Servers & Virtual Machines: Which specific VMs run the ATM application?
Data Stores: Where is the transaction data stored (SQL Clusters, S3 Buckets, SANs)?
Network Dependencies: What subnets, firewalls, and load balancers are required for traffic to flow?
Authentication: Which Active Directory controllers handle the service accounts?

Titan Bank Scenario: The Business Unit has identified "ATM Withdrawals" as a critical function. In Step 1, the DR team maps this to: * Primary Database: SQL-ATM-01 (16 Cores, 64GB RAM) * Web Front End: WEB-ATM-Cluster (3 Nodes) * Dependency: API Gateway connection to the Visa/Mastercard interchange network.

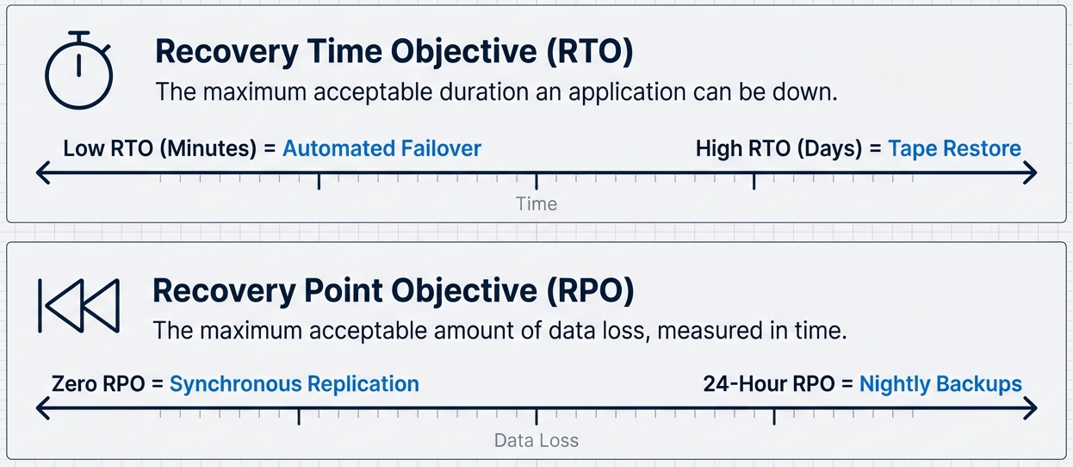

Step 2: Define Recovery Objectives

Once the assets are mapped, we must quantify the performance targets for recovery. These metrics act as the Service Level Agreement (SLA) between IT and the Business.

Recovery Time Objective (RTO)

RTO is the maximum acceptable duration of time that an application can be down.

Low RTO (Minutes): Requires expensive, automated failover solutions (e.g., Hot Sites).
High RTO (Days): Allows for slower, cheaper recovery methods (e.g., restoring from tape backup).

Recovery Point Objective (RPO)

RPO is the maximum acceptable amount of data loss, measured in time.

Zero RPO: No data loss allowed. Requires synchronous replication (every write to the primary drive is immediately written to the backup drive).
24-Hour RPO: Losing one day of work is acceptable. Allows for standard nightly backups.

Step 3: Detail Recovery Strategies (Architecture)

With objectives set, we must design an architecture that meets them. This involves selecting a Site Redundancy Model.

Cold Site

A Cold Site is an empty facility with power, cooling, and network connectivity, but no server hardware. In a disaster, you must purchase, ship, and install equipment before restoring data.

Cost: Low.
RTO: Weeks.
Use Case: Non-critical archiving or long-term record storage.

Warm Site

A Warm Site contains the hardware (servers and storage), but the data is not live. The equipment sits idle or is used for testing until a disaster is declared. Recovery involves powering up the environment and restoring the latest backups.

Cost: Medium.
RTO: Hours to Days.
Use Case: Internal corporate applications (e.g., HR portals, email archives) where a day of downtime is annoying but not fatal.

Hot Site (Active-Passive)

A Hot Site is a fully mirrored data center. The hardware is running, the operating systems are patched, and data is replicated in near real-time. Taking over operations is often as simple as flipping a network switch.

Cost: Very High.
RTO: Minutes.
Use Case: Critical transactional systems like Titan Bank's ATM network.

Cloud DR and Infrastructure as Code (IaC)

Modern DR often bypasses physical data centers entirely. Using Infrastructure as Code (IaC), engineers can define their entire environment in script files (like YAML or JSON).

In a disaster, the DR team executes the script against a public cloud provider (AWS, Azure, Google Cloud). The cloud provider automatically provisions hundreds of servers, configures networks, and attaches storage in minutes. This effectively creates a "Just-in-Time" Hot Site, dramatically reducing costs since you only pay for the servers when you run the script.

Note

We will cover this in more detail in Section 3.4.

Step 4: Create Back-up to Protect Data

If the architecture is the car, data is the passenger. We must ensure the passenger survives the crash. The industry standard for backup reliability is the 3-2-1 Rule.

3 Copies of Data: You must have the original production data and at least two separate backup copies.
2 Different Media: You should not store all copies on the same disk array. If the array controller fails, you lose everything. Store one copy on a local NAS and another on a different storage medium (Cloud Object Storage or Tape).
1 Offsite Copy: One copy must be geographically separated. If the primary data center burns down, the backup sitting in the rack next to it will burn too.

The Gold Standard: WORM Immutability

Ransomware attackers heavily target backup files. If they can encrypt your backups, you cannot recover without paying. To prevent this, we use WORM (Write Once, Read Many) storage technology.

Immutability: Once a backup is written to WORM storage, it is locked for a set retention period (e.g., 30 days). No user, not even the root administrator, can delete or modify that file until the timer expires.
The Stone Tablet Analogy: Think of a standard backup like a whiteboard; it is easy to write on, but also easy for an attacker to erase. WORM storage is like carving a stone tablet; once the data is cut, it is permanent.

Step 5: Develop the Communication Plan

A disaster is a chaotic event. The DRP must include a rigid communication framework to cut through the confusion.

The Activation Phase

Disasters are not "officially" happening until they are Invoked. This prevents lower-level engineers from accidentally triggering a massive failover event for a minor glitch.

Declaration of Disaster: "As of 08:45 AM, following the failure of the primary ATM SQL Cluster and a failed local hardware repair attempt, I, Sarah Jenkins (DR Coordinator), officially invoke the Titan Bank Disaster Recovery Plan. We are moving to failover operations at the 'Warm Site' located in the Northern Data Center."

The Call Tree

The Call Tree ensures the right people are notified in the right order.

Role	Contact Name	Primary Phone	Priority
DR Coordinator	Sarah Jenkins	555-0101	1
Lead DBA	Mike Chen	555-0102	1
Network Lead	Alex Rivera	555-0103	2
Infrastructure Vendor	StorageCorp Support	1-800-BACKUP	3

Out-of-Band Communications

If the corporate email server is down (or compromised), how does the DR team communicate? The plan must specify Out-of-Band (OOB) channels, such as:

Encrypted messaging apps (Signal/WhatsApp).
Dedicated Case Management tools
Emergency conference bridge lines hosted by a third-party provider.

Step 6: Conduct Regular Testing and Training

A Disaster Recovery Plan that exists only on paper is a liability. It must be validated through a rigorous Testing Maturity Model.

Tabletop Exercise (Discovery): A structured walkthrough where stakeholders sit in a conference room and "talk through" a scenario.
- Goal: Find logic errors. (e.g., "Wait, the person with the encryption keys is on the same flight as the DR Coordinator.")
Simulation (Component Testing): Technical teams perform recovery tasks in a sandbox environment without affecting production.
- Goal: Verify technical procedures. (e.g., Restoring the SQL database to a test server to measure exactly how long it takes.)
Parallel Testing (Load Validation): The recovery site is brought online and processes a copy of real-time data, but the primary site remains the authority.
- Goal: Verify the secondary site can handle the traffic load.
Full Cutover (The Ultimate Test): The primary site is intentionally disconnected, and the organization runs entirely on the DR site for a set period.
- Goal: Prove resilience and compliance to auditors.

Step 7: Continuous Maintenance and Improvement

The IT environment changes daily. New servers are added, software is patched, and passwords are changed. If the DRP is not updated to reflect these changes, it becomes useless ("Configuration Drift").

Maintenance Triggers:

Scheduled Reviews: Quarterly validation of contact lists and hardware inventories.
Change Management Integration: Every time a new application is deployed, the Change Advisory Board (CAB) must ask: Is this application added to the backup schedule? Is it in the DR plan?
Post-Mortem Updates: After every test or real incident, the team conducts a "Lessons Learned" session. Any gap found (e.g., "The DNS update took too long") must result in a direct update to the DRP document.

3.3 When Disaster Strikes

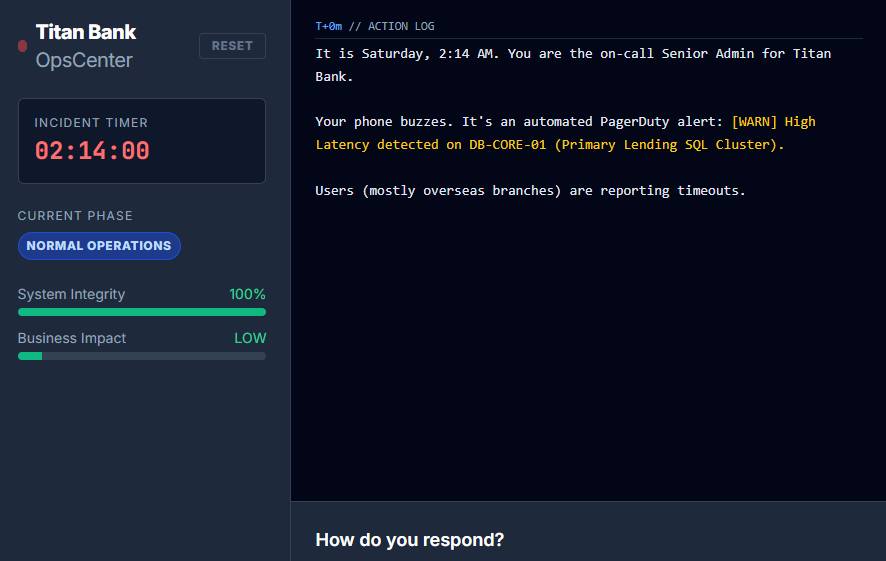

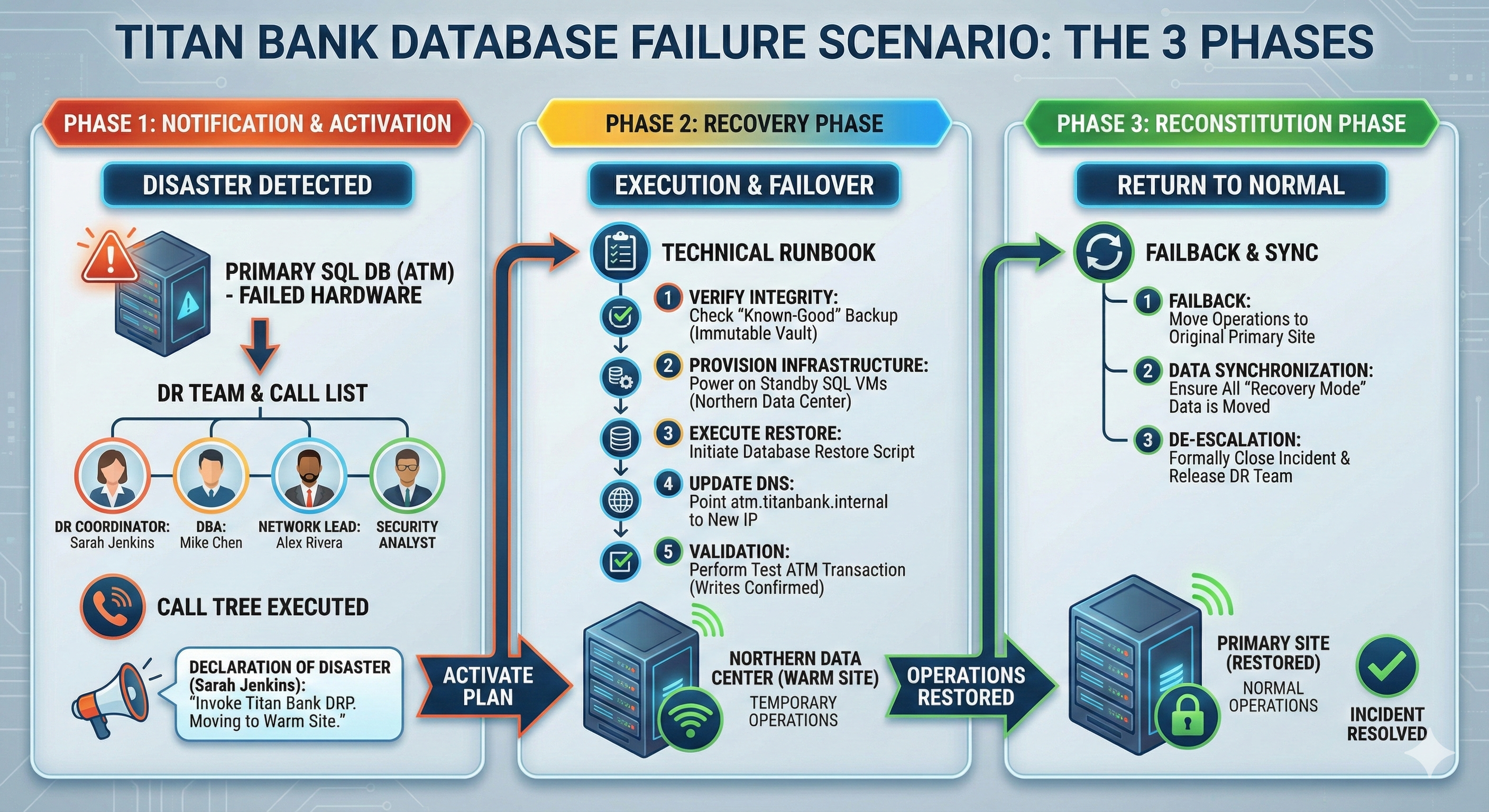

Scenario: The "Titan Bank" Database Failure

To illustrate the DRP, we will use a realistic scenario: Titan Bank, a regional bank, has discovered that their primary SQL database—which handles all ATM transactions—has suffered catastrophic corruption due to a failed hardware controller.

Phase 1: Notification and Activation

This phase begins the moment a potential disaster is detected.

The DR Team

A standard DR team includes specialized roles to ensure a coordinated response:

DR Coordinator: Manages the overall execution and communicates with executives.
Database Administrator (DBA): Performs the actual data restoration and integrity checks.
Network Engineer: Ensures connectivity to the failover site and updates DNS.
Security Analyst: Confirms the failure wasn't caused by an active cyberattack (e.g., ransomware).

Example: The Call List (Emergency Contacts)

The Call Tree ensures the right people are notified in the right order.

Role	Contact Name	Primary Phone	Priority
DR Coordinator	Sarah Jenkins	555-0101	1
Lead DBA	Mike Chen	555-0102	1
Network Lead	Alex Rivera	555-0103	2
Infrastructure Vendor	StorageCorp Support	1-800-BACKUP	3

Example: Plan Invocation (The Declaration)

A disaster is not "officially" happening until it is Invoked.

Declaration of Disaster: "As of 08:45 AM, following the failure of the primary ATM SQL Cluster and a failed local hardware repair attempt, I, Sarah Jenkins (DR Coordinator), officially invoke the Titan Bank Disaster Recovery Plan. We are moving to failover operations at the 'Warm Site' located in the Northern Data Center."

Phase 2: Recovery Phase

This is the "Execution" phase where technical restoration work occurs to restore temporary operations.

Example: Technical Runbook (SQL Database Restore)

A Runbook is a step-by-step technical guide for a specific system. It must be detailed enough that a qualified engineer can follow it even under extreme stress.

Verify Integrity: Confirm the last "Known-Good" backup from the immutable storage vault.
Provision Infrastructure: Log into the Northern Data Center management console and power on the standby SQL Virtual Machines.
Execute Restore: Initiate the database restore script.
Update DNS: Change the atm.titanbank.internal record to point to the new Northern Data Center IP.
Validation: Perform a test transaction to confirm the database is accepting writes.

Phase 3: Reconstitution Phase

This phase covers the journey back to "Normal".

Failback: The process of moving operations back from the temporary DR site to the original primary site.
Data Synchronization: Ensuring all data created while in "Recovery Mode" is successfully moved back to the primary systems.
De-escalation: Formally closing the incident and releasing the DR team.

3.4 Disaster Recovery Architectures

The 3-2-1 Rule and the WORM Standard

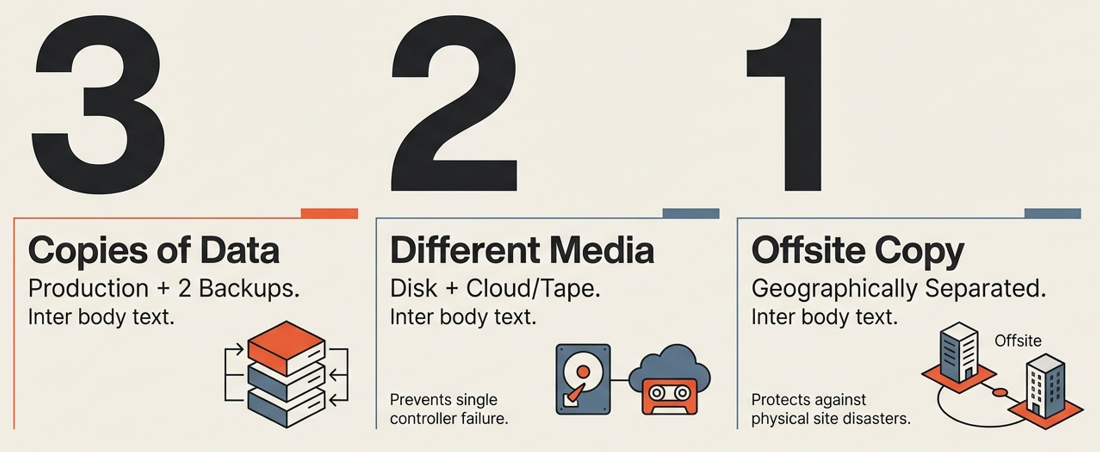

The industry standard for backup reliability is the 3-2-1 Rule:

3 Copies of Data: The original and two backups.
2 Different Media: Storage on different hardware (e.g., local server and cloud).
1 Offsite Copy: Physical or logical separation.

WORM Immutability: The Digital Vault

Modern disaster recovery hinges on WORM (Write Once, Read Many). This is a data storage technology that allows information to be written to a storage device once, but prevents it from being altered or deleted for a set retention period.

Analogy: Think of a standard backup like a whiteboard. You can write your data on it, but an attacker (ransomware) can easily take an eraser and wipe it out or change the message. A WORM backup is like a stone tablet. Once the data is carved into the stone, it cannot be erased or changed. You can look at it as many times as you want, but the "carving" is permanent.

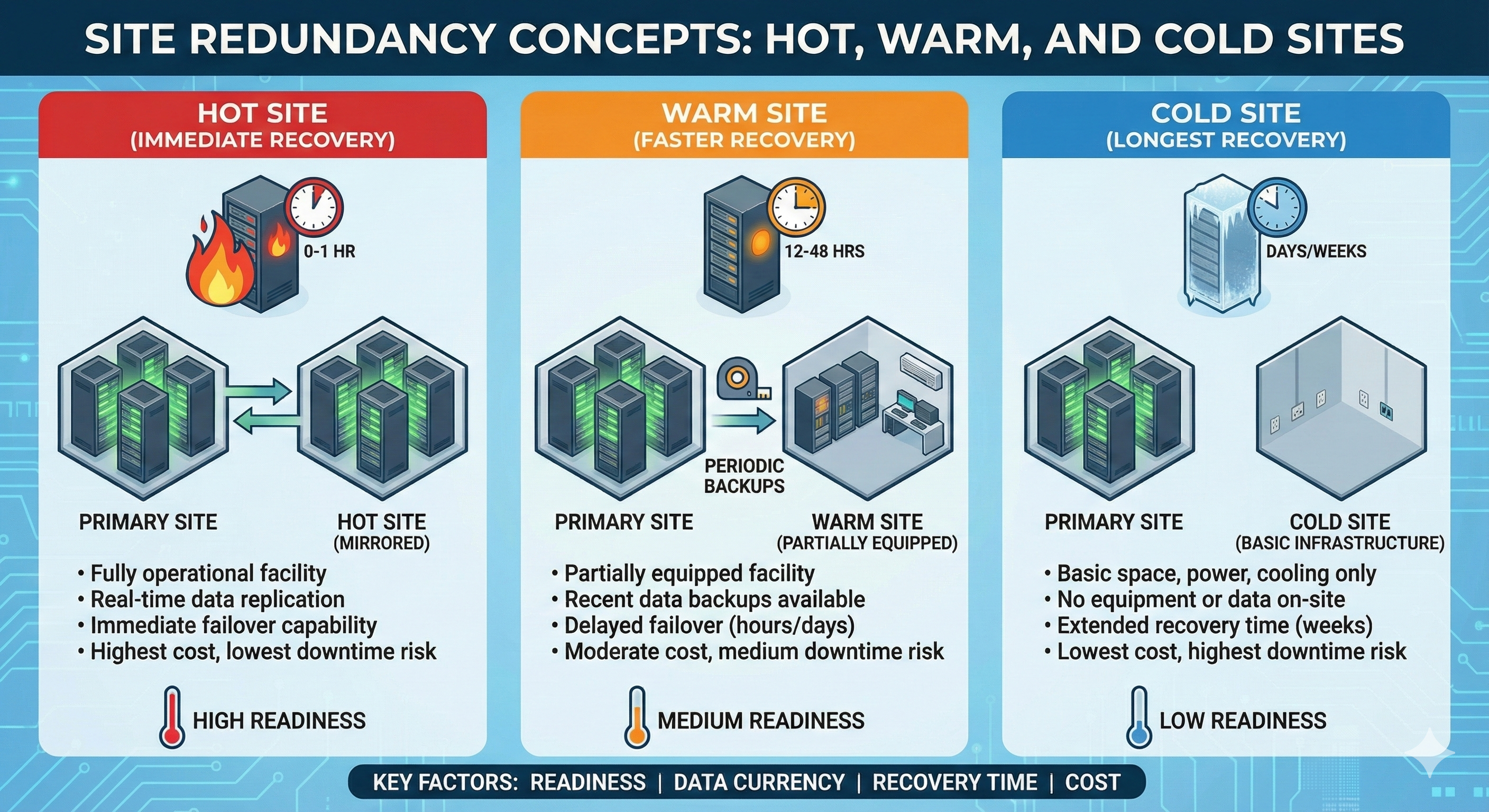

Site Redundancy Concepts

Before choosing a recovery site, an organization must balance the cost of downtime against the cost of infrastructure. Site Redundancy is the practice of maintaining secondary locations that can take over operations if the primary site fails. These are generally categorized by their "readiness" level.

Site Type	Description	Cost	Recovery Speed (RTO)
Hot Site	A fully mirrored data center with real-time data synchronization.	Very High	Seconds to Minutes
Warm Site	Hardware is ready, but data must be restored from backup before use.	Medium	Hours to Days
Cold Site	An empty room with power and cooling; everything must be shipped in.	Low	Days to Weeks

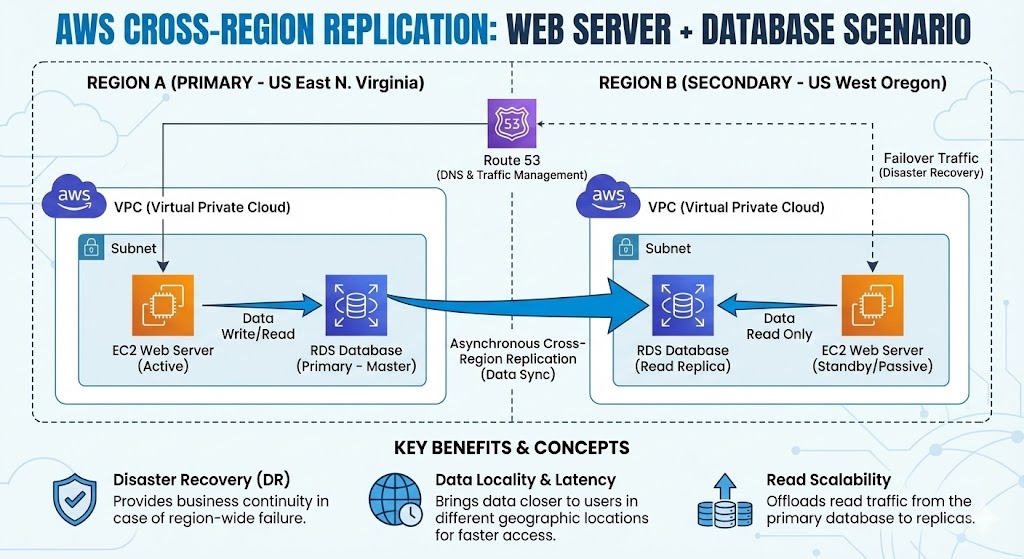

Cloud Global Infrastructure: Regions and Availability Zones

Public Cloud providers have revolutionized DR by offering built-in geographic separation.

Regions: Geographical areas (e.g., US-East). Placing a DR site in a different Region protects against massive disasters like hurricanes.
Availability Zones (AZs): Isolated data centers within a Region. Designing for "Multi-AZ" deployment ensures that if a single building fails, your application stays online in another AZ.

Infrastructure as Code (IaC) and YAML

In a disaster, manual configuration is too slow. Instead, we use Infrastructure as Code (IaC) to define our entire data center in a text file.

What is YAML?

Most IaC tools use YAML (Yet Another Markup Language or sometimes referred as YAML Ain't Markup Language). It is a "human-readable" language used for configuration files that relies on indentation to show how data is organized.

Example: AWS CloudFormation (YAML)

The following YAML script tells AWS to create a virtual server (EC2) and a storage bucket (S3) for Titan Bank's backups:

Resources:
  # This section creates a storage bucket for Titan Bank backups
  TitanBackupBucket:
    Type: 'AWS::S3::Bucket'
    Properties:
      BucketName: titan-bank-dr-backups-2025

  # This section creates a virtual server to run the SQL Database
  TitanSQLServer:
    Type: 'AWS::EC2::Instance'
    Properties:
      InstanceType: t3.medium
      ImageId: ami-0abcdef1234567890 # Example ID for a Windows Server
      Tags:
        - Key: Name
          Value: DR-SQL-Server-01

3.5 DR Testing and Validation: The Rigor of Readiness

A Disaster Recovery Plan that exists only on paper is a liability, not an asset. To be effective, the DRP must be subjected to a rigorous testing lifecycle that moves from theoretical discussion to full-scale technical execution.

The Testing Maturity Model

Tabletop Exercise (Discovery): This is a structured walkthrough involving all key stakeholders. The team gathers in a conference room to "play out" a scenario.
- Goal: Identify logical gaps, outdated contact information, or missing dependencies.
- Example: During the Titan Bank tabletop, the team realizes the Lead DBA is on vacation, and no one else has the encryption keys for the backup vault. This "failure" on paper prevents a real failure later.
Simulation (Component Testing): Unlike a tabletop, a simulation involves actual technical work, but within a restricted "sandbox" environment.
- Goal: Verify that specific technical tasks (like a database restore) actually work without impacting production.
- Example: Mike Chen, the Lead DBA, attempts to restore a 500GB database to a test server to see exactly how many minutes it takes.
Parallel Testing (Synchronization Validation): In this phase, the recovery site is brought fully online and begins receiving data updates from the primary site, but users remain on the primary site.
- Goal: Ensure that data is synchronizing correctly and that the DR site has enough "horsepower" (CPU/RAM) to handle the load.
Full Cutover (The Ultimate Test): This is the most rigorous test possible. The primary production systems are intentionally shut down, and the entire organization is forced to run from the DR site for a set period.
- Goal: Prove beyond a doubt that the organization can meet its RTO and RPO targets.

Note

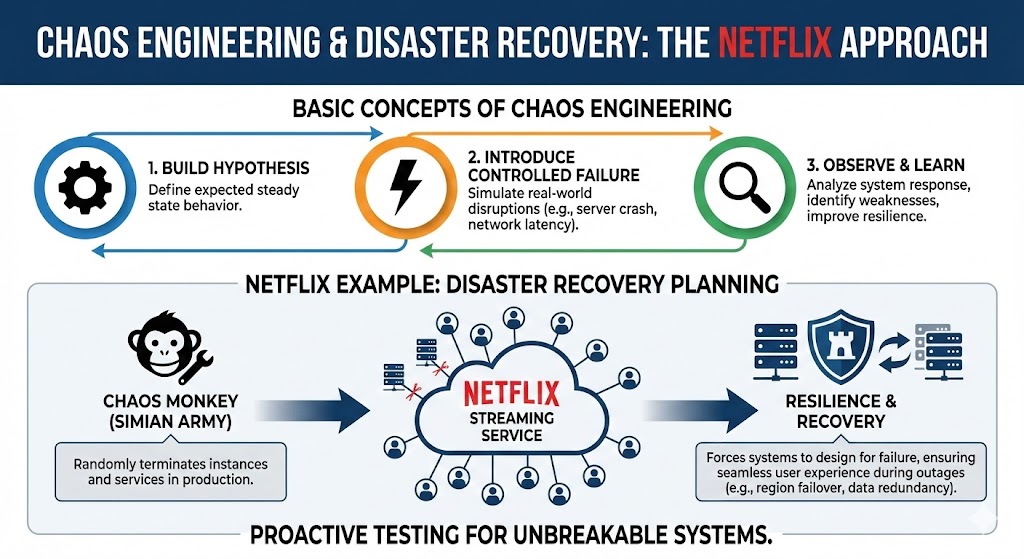

Industry Spotlight: Chaos Engineering

Some organizations take DR testing to the extreme through a practice called Chaos Engineering—the discipline of intentionally injecting failures into production systems to verify resilience. The most famous example is Netflix's "Chaos Monkey," a tool that randomly terminates servers during business hours to ensure their streaming platform can survive unexpected outages. The philosophy is simple: if your system is going to fail, it's better to break it on purpose during work hours when engineers are ready than to discover weaknesses at 3:00 AM on a holiday weekend. While Chaos Engineering is an advanced practice typically found in large tech companies with mature DevOps cultures, understanding its existence helps illustrate an important principle—the most resilient organizations don't just hope their systems can handle failure, they prove it by failing constantly in controlled ways.

3.6 Critical Dependencies: The "Hidden" Pillars of DR

A recovery plan often fails because engineers focus on the "Big Servers" while ignoring the "Support Infrastructure." In DR planning, these are Critical Dependencies.

1. Identity Services (The Authentication Barrier)

If your primary data center goes offline, your Active Directory (AD) or Identity Provider (IdP) likely goes with it.

The Risk: You restore your SQL database perfectly, but because the AD server is down, no one can log in to access the data.
The Solution: Use Break-Glass Accounts. These are local administrator accounts whose credentials are stored in a physical or digital vault (like a safe). They do not require a network connection or MFA to function, allowing engineers to "get in the door" when the identity system is dead.

2. Networking and DNS (The Routing Barrier)

DNS (Domain Name System) is the "phone book" of the internet.

The Risk: Titan Bank moves its operations to the Northern Data Center. However, when customers type titanbank.com, the internet still sends them to the "Old" IP address of the flooded main office.
The Solution: DR plans must include pre-configured TTL (Time to Live) settings on DNS records to ensure updates propagate across the internet in minutes, not days.

3. Cloud and SaaS Continuity (The Responsibility Barrier)

Some might believe that moving to the Cloud (AWS, Microsoft 365) means they no longer need a DR plan. This is a dangerous misconception called the Shared Responsibility Model.

The Risk: Microsoft is responsible for making sure the servers running "Teams" stay on. However, if a Titan Bank employee accidentally (or maliciously) deletes all the bank's files, Microsoft is not responsible for that data loss.
The Solution: Organizations must maintain third-party backups of their SaaS data (e.g., backing up Microsoft 365 data to a different cloud provider).

3.7 Disaster Recovery as a Service (DRaaS)

As organizations increasingly move away from owning physical hardware, the concept of the "backup data center" is evolving. Traditionally, maintaining a secondary DR site required massive capital investment (CapEx): buying duplicate servers, renting real estate, and paying for power and cooling even when the equipment sat idle.

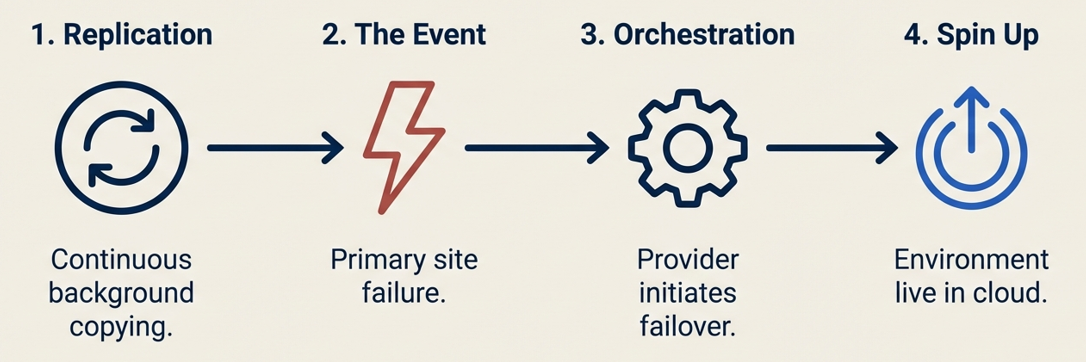

Disaster Recovery as a Service (DRaaS) changes this model. DRaaS is a cloud computing service model where an organization replicates its servers and data to a third-party cloud provider. In the event of a disaster, the provider orchestrates the failover, allowing the organization to spin up its environment in the cloud within minutes.

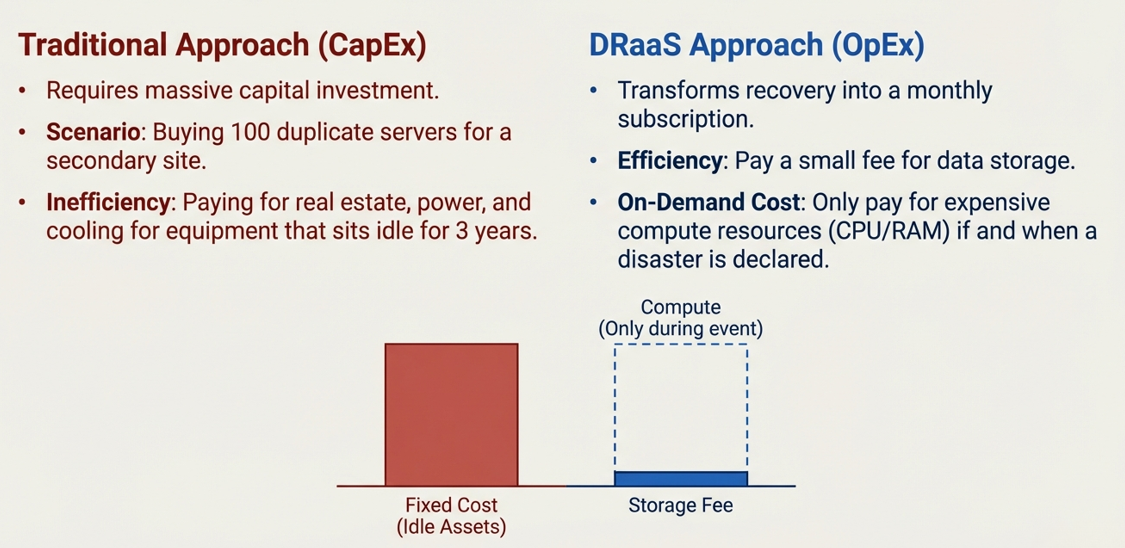

The Shift from CapEx to OpEx

DRaaS transforms disaster recovery from a Capital Expense (buying hardware) to an Operating Expense (paying a monthly subscription).

Traditional DR: You buy 100 servers for your secondary site. They sit idle for 3 years. You pay for them regardless of whether you use them.
DRaaS: You pay a small fee to store your data in the cloud. You only pay for the expensive compute resources (CPU/RAM) if and when you declare a disaster and spin up the servers.

Common DRaaS Architectures and Tools

The DRaaS market offers various tools that integrate directly with on-premises infrastructure. Understanding the specific capabilities of these tools is essential for a DR planner.

1. Azure Site Recovery (ASR)

Microsoft’s Azure Site Recovery is a leading tool for organizations already using Windows Server or Hyper-V, though it supports VMware and physical servers as well.

How it works: ASR installs a "Mobility Service" agent on your local servers. This agent continuously replicates data changes (deltas) to a storage vault in the Microsoft Azure cloud.
Failover: When the primary site goes down, ASR automatically converts the stored data into running Virtual Machines within Azure.
Key Feature: Recovery Plans. ASR allows you to script the order of recovery (e.g., "Start the SQL Database first, wait 2 minutes, then start the Web Server").

2. Veeam Cloud Connect

Veeam Cloud Connect allows organizations to easily send backups and replicas to a "Cloud Connect Provider" (a managed service provider) without setting up complex VPNs.

How it works: It acts as a secure gateway. An administrator simply adds the Service Provider’s credentials into their local Veeam console, and the cloud repository appears as if it were a local drive.
Key Feature: Insider Protection. Many Cloud Connect providers offer a "recycle bin" feature that protects against ransomware. Even if a hacker deletes the backups from your local console, the provider keeps a hidden copy for several days that the hacker cannot see or touch.

3. AWS Elastic Disaster Recovery (AWS DRS)

Formerly known as CloudEndure, AWS DRS is Amazon’s native offering. It is designed to replicate servers from any source (on-premise, Azure, or other clouds) into AWS.

How it works: It utilizes a "staging area"—a low-cost section of the cloud where data is compressed and stored.
Failover: Upon disaster declaration, AWS DRS automatically converts the staged data into full-sized AWS EC2 instances.
Key Feature: Continuous Data Protection (CDP). Unlike traditional backups that run once a night, AWS DRS replicates data in near-real-time, allowing for RPOs measured in seconds.

The Three DRaaS Service Levels

Not all DRaaS is managed the same way. Organizations must choose a service level based on their internal technical expertise:

Self-Service DRaaS: The vendor provides the tools and the cloud platform, but your team is responsible for setting up replication, testing, and pushing the button to failover. (Lowest Cost, Highest Internal Effort).
Assisted DRaaS: The vendor acts as a partner. They help design the plan and support you during a disaster, but you likely still retain the authority to declare the disaster.
Managed DRaaS: The vendor takes full responsibility. They monitor your systems 24/7, perform the testing for you, and manage the failover process entirely. (Highest Cost, Lowest Internal Effort).

Benefits and Challenges

While DRaaS is a powerful solution, it introduces specific risks that must be managed.

Feature	Benefit	Challenge/Risk
Speed	Automated orchestration allows for RTOs of minutes rather than hours.	Bandwidth Dependency: If the internet connection is severed or too slow, replication fails, and RPO targets are missed.
Testing	Non-disruptive testing allows you to spin up a "bubble" copy of your environment without stopping production.	Complexity of Failback: Failing over to the cloud is often easy; moving data back to the on-premise data center after repairs (Failback) can be difficult and time-consuming.
Compliance	Shifts security responsibility for physical infrastructure to the vendor.	Data Sovereignty: You must ensure the cloud provider's data center is located in a geographic region allowed by your industry regulations (e.g., GDPR requires data to stay within certain borders).

3.8 DR Simulation: Test Your Understanding

Do you think you can make the right decisions in a real disaster? Try out this simulator!

Summary

Disaster Recovery Planning is the technical discipline that restores IT infrastructure after a disruptive event, complementing Business Continuity's focus on people and processes. Effective DR requires quantified objectives (RTO, RPO, and MTD), resilient backup strategies following the 3-2-1 rule with WORM immutability to counter ransomware, and architectural decisions that balance recovery speed against cost through Cold, Warm, Hot, or cloud-based sites.

Recovery execution follows three phases—Notification/Activation, Recovery, and Reconstitution—supported by clear communication plans, technical runbooks, and break-glass accounts for when identity systems fail. Most critically, a DR plan is only as reliable as its last successful test; organizations must progress from Tabletop exercises through Full Cutover tests to validate that documented procedures actually work under pressure. Plans that ignore critical dependencies like DNS propagation, identity services, or the cloud Shared Responsibility Model will fail when needed most.
