CH2: Business Continuity and the Business Impact Analysis (BIA)

Module Overview

Welcome to the operational core of the course. In Week 1, we established the "Resilient Foundation" by defining risk management and the ecosystem of contingency planning. We identified what threatens us. Now, in Week 2, we must quantify the pain those threats cause and design the processes to survive them.

This week, we shift focus to Business Continuity Planning (BCP).

In the field, a cybersecurity professional's value is often measured not by how well they prevent an attack, but by how quickly the organization recovers from one. While Disaster Recovery (DR)—which we will cover next week—focuses on the technology (restoring servers, data, and code), Business Continuity (BC) focuses on the mission (revenue, safety, and operations).

The Practitioner's Perspective: It is insufficient to simply "back up data." A true professional understands that restoring a server (DR) is useless if the business unit does not know how to verify the data, notify clients, or process transactions manually while the restore is happening. This module bridges the gap between "IT Uptime" and "Business Survival."

Learning Objectives:

Differentiate between Business Continuity (BC), Disaster Recovery (DR), and Crisis Management (CM) as per NIST SP 800-34.
Execute the four phases of the Business Impact Analysis (BIA) methodology.
Classify business functions by criticality (Mission-Critical vs. Non-Critical).
Calculate core metrics: RTO, RPO, WRT, and MTD.
Construct dependency maps to identify Single Points of Failure (SPOF) in upstream and downstream flows.
Develop a comprehensive BCP document structure including activation triggers and manual workarounds.

2.1 The Unified Continuity Architecture

Before diving into the mechanics of the BIA, we must situate Business Continuity within the broader resilience framework. As outlined in NIST SP 800-34, contingency planning is not a single activity but a family of disciplines. While often spoken in the same breath as "BCDR," these are distinct domains that activate at different points on the disaster timeline.

2.1.1 The Four Pillars of Resilience

To build a resilient organization, you must understand the "Lane of Operation" for each discipline:

Component	Primary Focus	Goal	Example
Business Continuity (BC)	Process & People	Maintain operations during a disruption.	Processing payroll manually using paper ledgers while the cloud is down.
Disaster Recovery (DR)	Technology & Data	Restore IT infrastructure.	Rebuilding SQL databases from tape backups after a ransomware encryption event.
Crisis Management (CM)	Strategy & Reputation	Manage liability and public perception.	The CEO holding a press conference to reassure investors about a data breach.
Occupant Emergency	Life Safety	Protect physical safety.	Evacuating the building during a fire or sheltering in place during a tornado.

The 'IT vs. Business' Rule

If the activity involves a keyboard, a server, a switch, or a cable, it is likely DR. If the activity involves a policy, a workaround, a checklist, a press release, or human safety, it is likely BC.

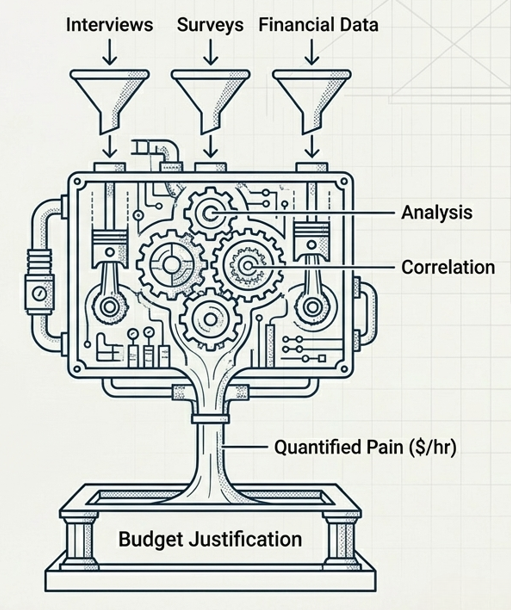

2.2 BIA Methodology: The Foundation

The Business Impact Analysis (BIA) is the analytical engine of contingency planning. It is impossible to build a cost-effective recovery strategy if you do not know what you are recovering or why it matters. The BIA answers the fundamental question: "If this specific department stops working, how much money do we lose per hour?".

Without a BIA, security spending is based on guesses. With a BIA, spending is based on quantified pain.

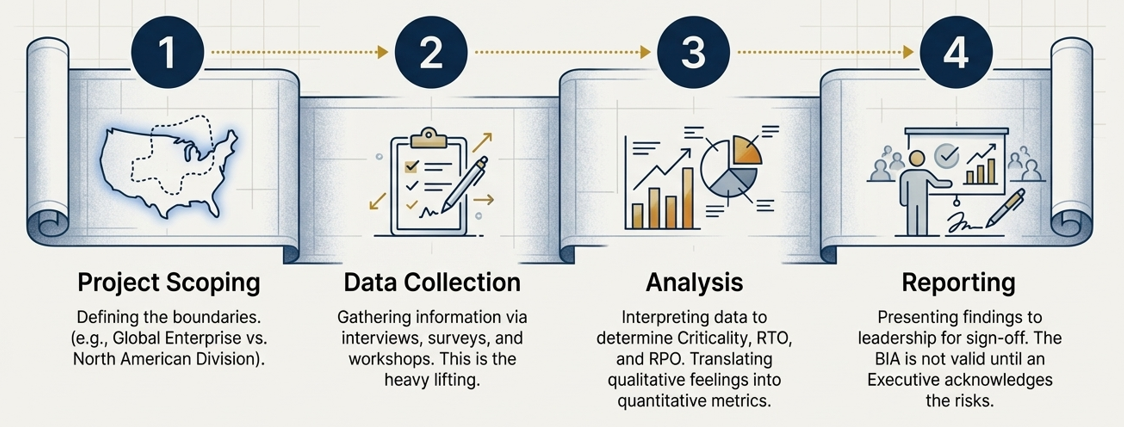

2.2.1 The Four Phases of BIA

Project Scoping: Defining the boundaries. Are we analyzing the whole Global Enterprise, or just the North American Manufacturing Division?
Data Collection: Gathering information via interviews, surveys, and workshops. This is the heavy lifting of the process.
Analysis: Interpreting the data to determine Criticality, RTO, and RPO. This involves translating qualitative feelings into quantitative metrics.
Reporting: Presenting findings to leadership for sign-off. The BIA is not valid until an Executive acknowledges the risks.

2.2.2 Data Collection: Asking the Right Questions

Novice analysts rely on surveys. Expert analysts conduct interviews. A survey might tell you what a department does, but an interview tells you how they do it and what terrifies them.

When interviewing a Department Head, your goal is to identify Critical Business Functions (CBFs).

Practitioner's Toolkit: Stakeholder Interview Questions

Process Identification: "Walk me through your day-to-day. What specific inputs (data, raw materials) do you need to do your job?"
Impact Assessment: "If you could not perform this task for 4 hours, what is the financial impact? What about 24 hours? 1 week?"
Dependency Mapping: "Who provides you with data? Who relies on your output? If the 'Label Printer' server goes down, can you still ship products?"
Workarounds: "Do you have a paper form for this? When was the last time you practiced using it?"
Peak Times: "Is there a specific time of year where downtime is catastrophic (e.g., Black Friday for retail, Tax Day for accounting)?"

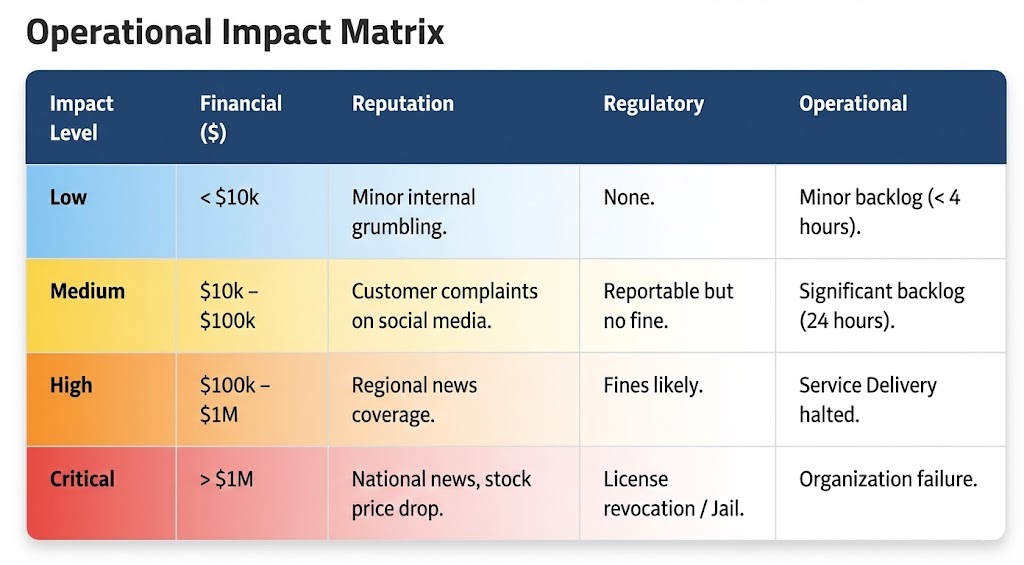

2.2.3 Operational Impact Assessment

Impact is not exclusively financial. While money is a universal language, some impacts are Intangible. We use an Operational Impact Matrix to quantify the "pain" of downtime across multiple dimensions.

Financial: Lost revenue, fines, penalties.
Reputational: Loss of customer confidence, negative press, stock price drop.
Regulatory: Breach of GDPR, HIPAA, or PCI-DSS requirements.
Operational: Backlog of work that will require overtime to clear.

2.3 Function Criticality & Metrics

Once impacts are assessed, we categorize every business function into tiered levels of criticality. This dictates the Recovery Priority. Not all systems are created equal; the cafeteria menu server does not need the same resilience as the ERP system.

2.3.1 Function Criticality Levels Table

Tier	Level	Definition	RTO Target	Example
1	Mission-Critical	Vital for survival. Failure causes immediate, irreparable harm or loss of life.	< 4 Hours	ER Intake System, Power Grid Control, Active Directory, Payroll.
2	Critical	Essential functions. Failure causes significant impact quickly.	24 Hours	Customer Support Center, Corporate E-mail, Logistics.
3	Important	Necessary for efficiency, but can delay for a short time.	72 Hours	New Hire Onboarding, Vendor Invoicing, Intranet.
4	Non-Critical	Nice to have. Can be deferred until after the crisis.	> 1 Week	Employee Training Portal, Cafeteria Menu, Archival Storage.

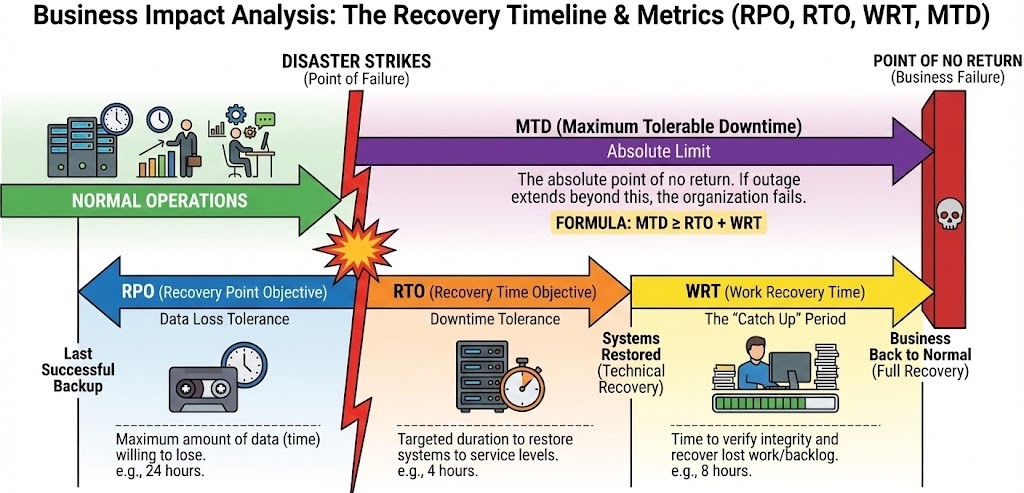

2.4 The Mathematics of Recovery: RTO, RPO, WRT, MTD

To run a real continuity program, you must master the timeline of a disaster. These acronyms are the language we use to negotiate with IT and Management.

2.4.1 Recovery Point Objective (RPO)

Definition: The maximum acceptable data loss, measured in time, prior to the disruption.
The Business Question: "If the server melts down right now, are you okay losing the last 4 hours of work, or do you need every keystroke up to the last second?"
The Cost Curve:
- RPO = 24 Hours: Achieved with standard nightly backups. (Low Cost).
- RPO = 1 Hour: Requires snapshots or hourly log shipping. (Medium Cost).
- RPO = 0 Seconds: Requires synchronous mirroring and real-time replication. (Very High Cost).

2.4.2 Recovery Time Objective (RTO)

Definition: The target time to resume operations after a disaster is declared.
The Business Question: "How long can you stare at a blank screen before the company loses a million dollars?"
Constraint: Shorter RTO requires faster (and more expensive) hardware and standby sites (Hot Sites).

2.4.3 Work Recovery Time (WRT)

Definition: The time required to verify system integrity and recover lost work (backlog) after the systems are technically up.
The Hidden Killer: IT might fix the server in 4 hours (RTO). However, the accounting team has a stack of 500 paper invoices that accumulated during the outage. If it takes them 8 hours to manually enter those into the system, the business is not "normal" yet.
Equation: Total Downtime is often felt as RTO + WRT.

2.4.4 Maximum Tolerable Downtime (MTD)

Definition: The "point of no return." If the outage extends beyond this time, the organization fails permanently (bankruptcy, loss of license, complete market exit).
The Formula: MTD ≥ RTO + WRT

The MTD Reality Check

If your IT team says their fastest RTO is 48 hours, but your BIA says the business MTD is 24 hours, you have a Resilience Gap. The organization is accepting a risk that could kill it. You must either invest in faster IT (reduce RTO) or change business processes (increase MTD).

OPEN BUSINESS IMPACT ANALYSIS METRIC SIMULATOR IN NEW TAB

2.5 Dependencies and Single Points of Failure (SPOF)

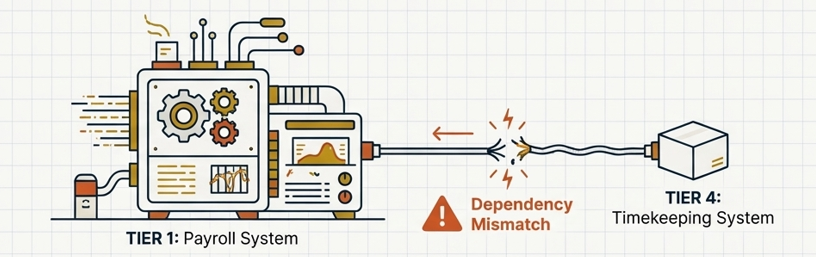

A BIA often reveals that a "Tier 1" function relies on a "Tier 4" system. This is a Dependency Mismatch, and it is a primary source of disaster failure.

2.5.1 Dependency Mapping

During the BIA, we map dependencies in three directions:

Upstream dependencies: Vendors, systems, or departments that feed you data.
- Example: You cannot process payroll if the Timekeeping System (Upstream) is down.
Downstream dependencies: Departments or Clients relying on your output.
- Example: The Warehouse cannot ship boxes if the "Label Printer Server" is down.
Internal dependencies: The hardware, software, and facilities required to function.
- Example: Laptops, HVAC, Wi-Fi, specialized dongles.

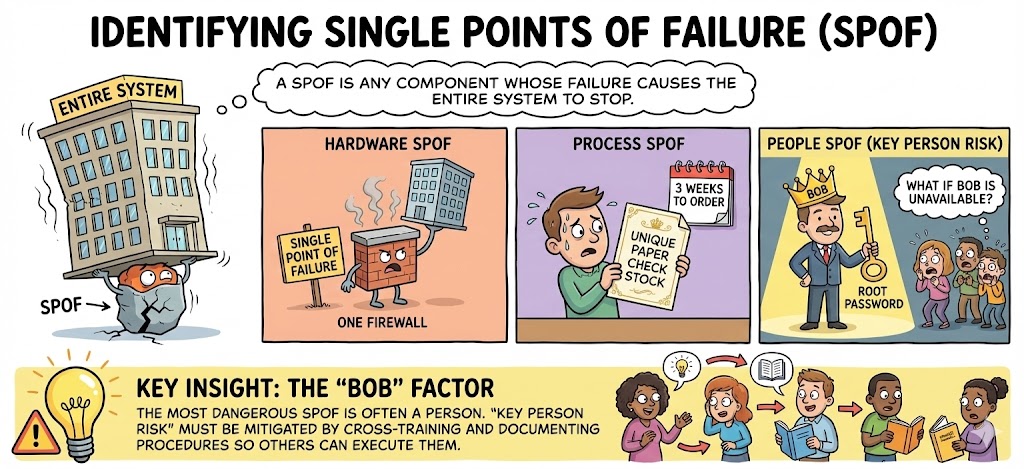

2.5.2 Identifying Single Points of Failure (SPOF)

A SPOF is any component whose failure causes the entire system to stop. The BIA is the best tool for hunting these down.

Hardware SPOF: One firewall for the entire building; one generator with no backup fuel contract.
Process SPOF: A unique paper check stock that takes 3 weeks to order from a specialty printer.
People SPOF (Key Person Risk): Only "Bob" knows the root password, or only "Sarah" knows how to process the international wire transfers. If they are unavailable, the process halts.

2.6 Developing the BCP Document

According to industry best practices (DRII/BCI) and the outline for this course, a professional BCP document is not a vague policy. It is a tactical manual intended for use during high-stress situations. It typically follows this structure:

2.6.1 Standard BCP Components

Executive Summary: A high-level overview for leadership. Defines the scope, objectives, and assumptions.
Roles and Responsibilities: Who is in charge? The BCP must define the Crisis Command Structure (discussed in Week 4).
- Crisis Management Team (CMT): Executives making strategic decisions.
- Recovery Coordinator: The tactical leader running the checklist.
BIA Summary: A brief recap of what functions are critical (Tier 1 & 2) and their required RTOs. This reminds the team what to fix first.
Activation and Notification: The Call Tree. Who calls whom?
- Primary: Automated mass-notification systems (e.g., Everbridge, PagerDuty).
- Secondary: Manual phone cascade (Manager calls 3 leads, they each call 3 staff).

2.6.2 Continuity Strategies & Workarounds

This is the heart of the BCP. For every Critical Business Function, there must be a defined strategy for when technology fails.

Workarounds: Designing manual/paper procedures for extended outages.
- Scenario: "The electronic Point of Sale (POS) system is down."
- Workaround: "Use the crash-kit located in the safe. It contains manual credit card knucklebusters, carbon-copy receipts, and a calculator. Limit transactions to $50."

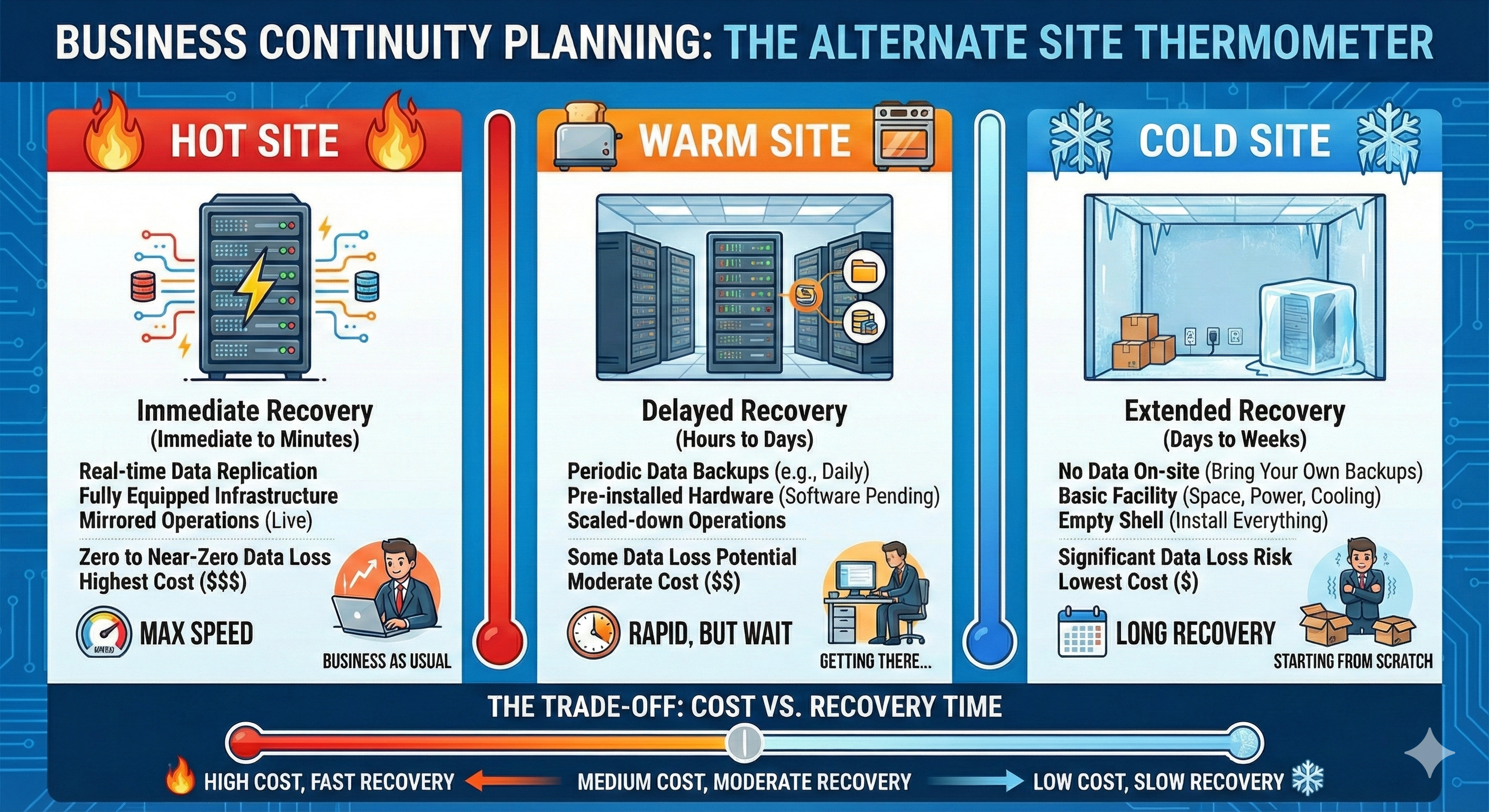

2.6.3 Alternate Facilities

Where do we work if the building is a crater?

Remote Work (WFH): The modern standard. Requires VPN capacity planning and laptop availability.
Hot Site: A fully equipped office with mirrored data, ready instantly. High cost.
Warm Site: A facility with hardware (servers/desks) but requiring data restoration.
Cold Site: An empty warehouse or room with power and cooling, but no equipment. Low cost, long setup time.

2.6.4 Communications and Appendices

Communications: Templates for pre-written messages to Employees, Customers, Media, and Regulators. "Holding statements" prevent panic and control the narrative.
Appendices: The "Grab and Go" information:
- Vendor contact lists (with account numbers).
- Insurance policy numbers.
- Maps to the recovery site.
- System Inventories.

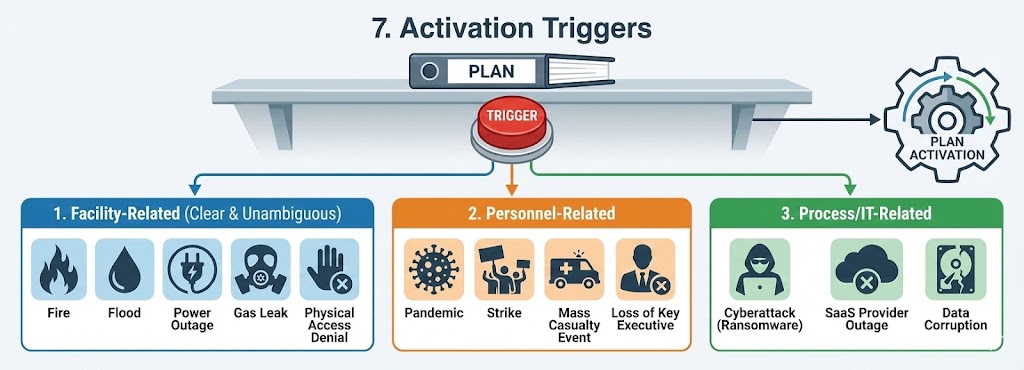

2.7 Activation Triggers

A plan sits on the shelf until a Trigger activates it. Triggers must be clear and unambiguous. Ambiguity leads to "The Frozen Zone," where managers hesitate to declare a disaster, wasting valuable recovery time.

Facility-Related: Fire, flood, power outage, gas leak, physical access denial (police tape around the building).
Personnel-Related: Pandemic, strike, mass casualty event, loss of key executive (Succession Planning).
Process/IT-Related: Cyberattack (Ransomware), SaaS provider outage, massive data corruption.

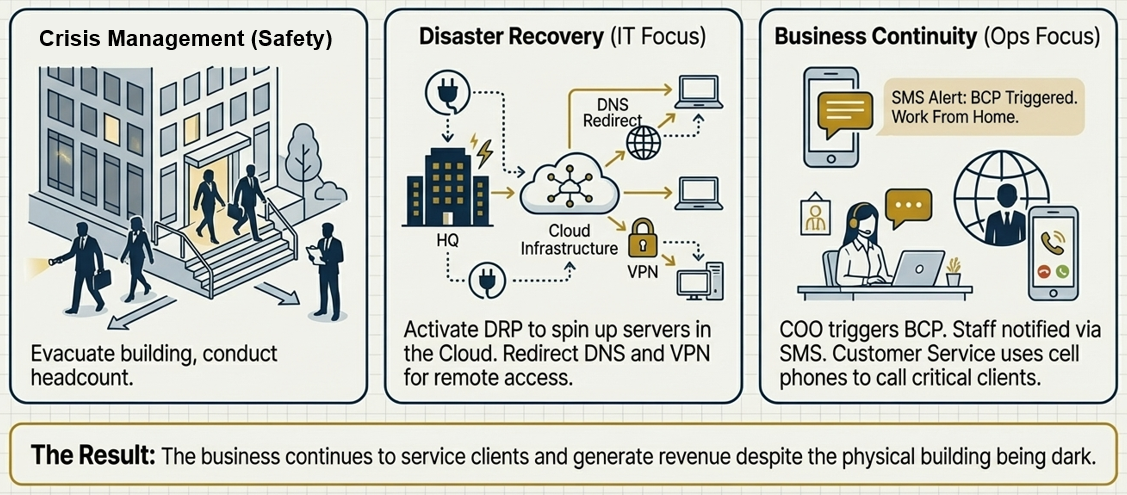

2.8 Scenario Application: Power Outage

Let's apply this to a real scenario to see the difference between DR and BC.

Scenario: A transformer blows, cutting power to Headquarters. The backup generator fails to start. Utility estimates say power will be out for 48 hours.

2.8.1 The Incident Response (Immediate Safety)

Safety: Evacuate the building. Use flashlights. Conduct a headcount (accountability check).
Assessment: Facilities team calls the power company and generator vendor for emergency repair.

2.8.2 The Disaster Recovery Response (IT Focus)

Failover: IT determines on-site servers are down. They activate the DRP to spin up virtual servers in the Cloud (Hot Site) or activate a secondary data center.
Redirect: Network team redirects the DNS and VPN so users connect to the Cloud instance instead of the dark HQ.

2.8.3 The Business Continuity Response (Ops Focus)

Activation: The COO triggers the BCP for "Facility Denial."
Notification: Staff are notified via SMS: "HQ Closed. Activate Remote Work Protocol."
Workaround: The Customer Service team cannot use their desk phones (VoIP is down at HQ).
- BCP Step: They log into the cloud CRM from home laptops.
- BCP Step: They use personal cell phones to call the top 10 critical clients using the contact list in Appendix A.
Result: The business continues to service clients and generate revenue despite the physical building being dark.

2.9 Testing and Maintenance

A plan that is not tested is just a theory. A plan that is not updated is a liability. NIST SP 800-84 defines several types of tests to ensure our BCP works in reality, not just on paper.

2.9.1 Checklist Review (Read-Through)

Department heads review their section of the plan to ensure names/numbers are current. * Cost: Low. * Frequency: Quarterly.

2.9.2 Walk-Through / Tabletop Exercise

The team gathers in a room. A facilitator presents a scenario (e.g., "Ransomware strikes at 2 AM on a Saturday"). The team talks through their response without actually moving equipment. * Goal: Identify logic gaps, missing phone numbers, and communication failures.

2.9.3 Simulation

A focused functional drill.

Example: Actually calling the Call Tree numbers to see if people answer.
Example: Actually attempting to fill out the manual paper invoices for one hour.
Goal: Test specific components.

2.9.4 Parallel Test

Systems are spun up at the backup site and transactions are processed there, but the primary site remains the "system of record." * Goal: Verify the backup site works without disrupting production.

2.9.5 Full Interruption

The primary site is shut down. All operations move to the backup site. * Risk: Extremely High. If the backup site fails, the company is down. This is rarely done outside of highly regulated industries (finance/defense).

Module Summary

This week we moved from theory to the "nuts and bolts" of continuity. We utilized the Business Impact Analysis (BIA) to prioritize functions based on Operational Impact and calculated the critical metrics of RTO, RPO, and MTD.

We learned that a plan requires specific Triggers to activate and relies on Manual Workarounds when technology fails. We explored the deep structure of a BCP Document, noting that it must include everything from Executive Summaries to detailed Appendices.

Finally, we saw that Testing (Tabletops) is the only way to validate that our Call Trees and strategies actually work. Next week, we will leave the "Business" side and dive into the "Bits and Bytes" in Module 3: Disaster Recovery Architectures & Planning, where we will learn how to technically restore the systems we just identified as critical.
